Surface Plates

•

  V Block (Fire-Hardened Steel)【2 Pieces Per Package】

  UNI SEIKI

  [Features]
  ·The V-groove is precision-finished at 90°, and is used for inspection of cylinders and precision scribing of round bars.
  ·There are 2 pieces in a set.
  [Applications]
  ·For precision scribing of cylindrical rods, etc.

  • STOCK

  Standard Price:	2,737,937 IDR-
  Days to Ship:	1 Day(s) or more

•

  Stone Made Precision V Block

  NIIGATA SEIKI (SK)

  Precision V-block made of granite.
  [Features]
  · Very convenient surface plate as a measurement tool for precision scribing.
  · It features advantages such as high hardness, excellent abrasion resistance, little secular change and rust resistance.
  · 2 pieces per set.
  [Applications]
  · Used as a measurement tool for precision scribing.

  Standard Price:	10,149,833 IDR-
  Days to Ship:	9 Day(s) or more

•

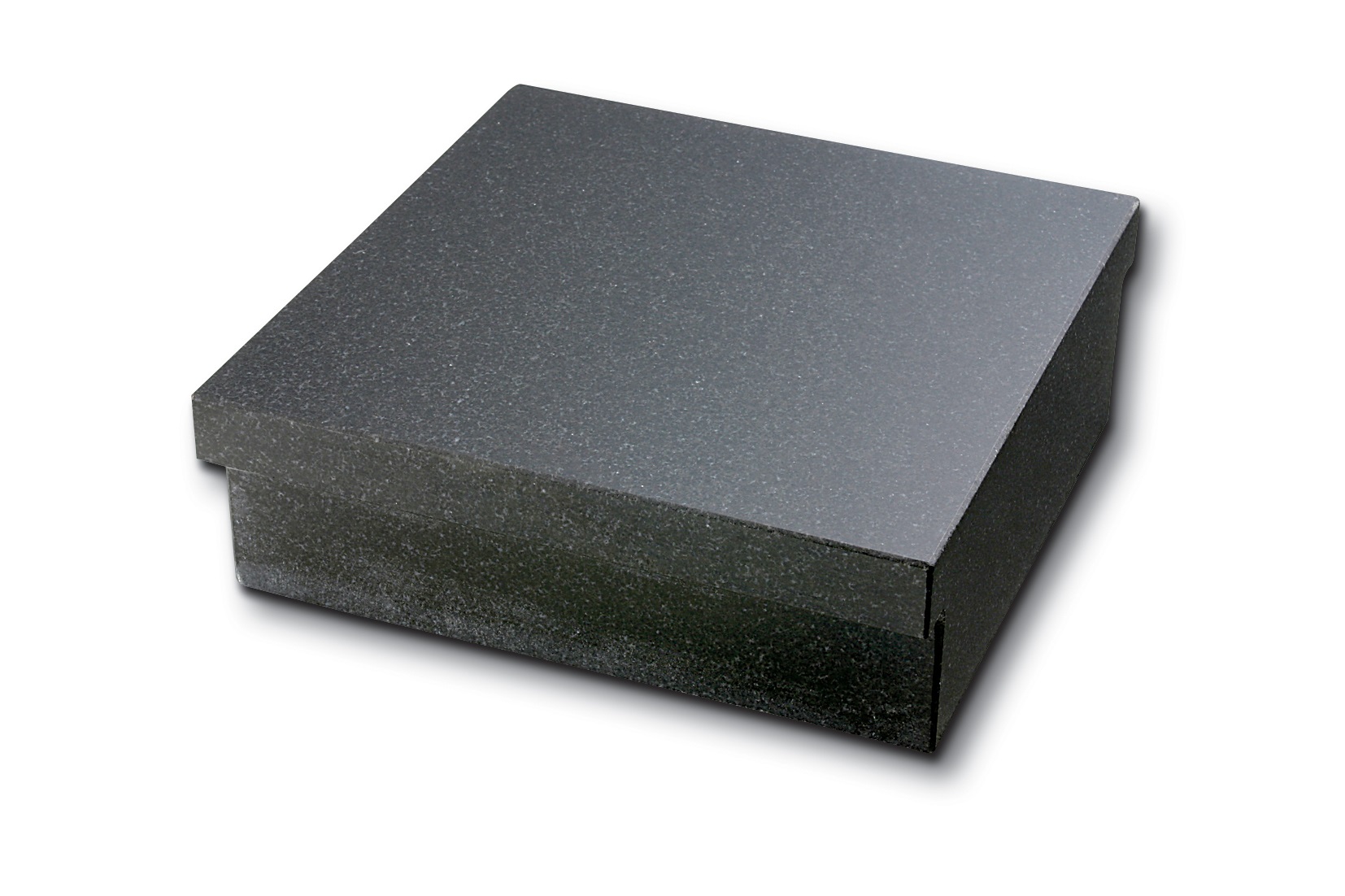

  Precision Stone Surface Plate

  OHNISHI MFG

  [Features]
  ·Due to its fine-grained structure, it has excellent rigidity and wear resistance.
  ·Since the natural stone itself is seasoned, there is no need to worry about aging.
  ·There is no risk of damage to measuring instruments as there is little stickiness and no burrs or bulges.
  ·Since there is no risk of rusting, it can be safely used in environments where chemicals are used, such as in chemical factories.
  [Applications]
  ·The high-precision surface plate is ideal for quality control departments and acceptance inspection departments in all manufacturing industries.

  Standard Price:	7,753,231 IDR-
  Days to Ship:	Quote

•

  V-Block Type A【2 Pieces Per Package】

  MISUMI

  Select from 2 types; machined finish and high-accuracy ground finish.
  Abundant sizes are also available.
  Providing standard products at these prices.

  • Volume Discount

  Standard Price:	659,405 IDR-
  Days to Ship:	11 Day(s) or more

•

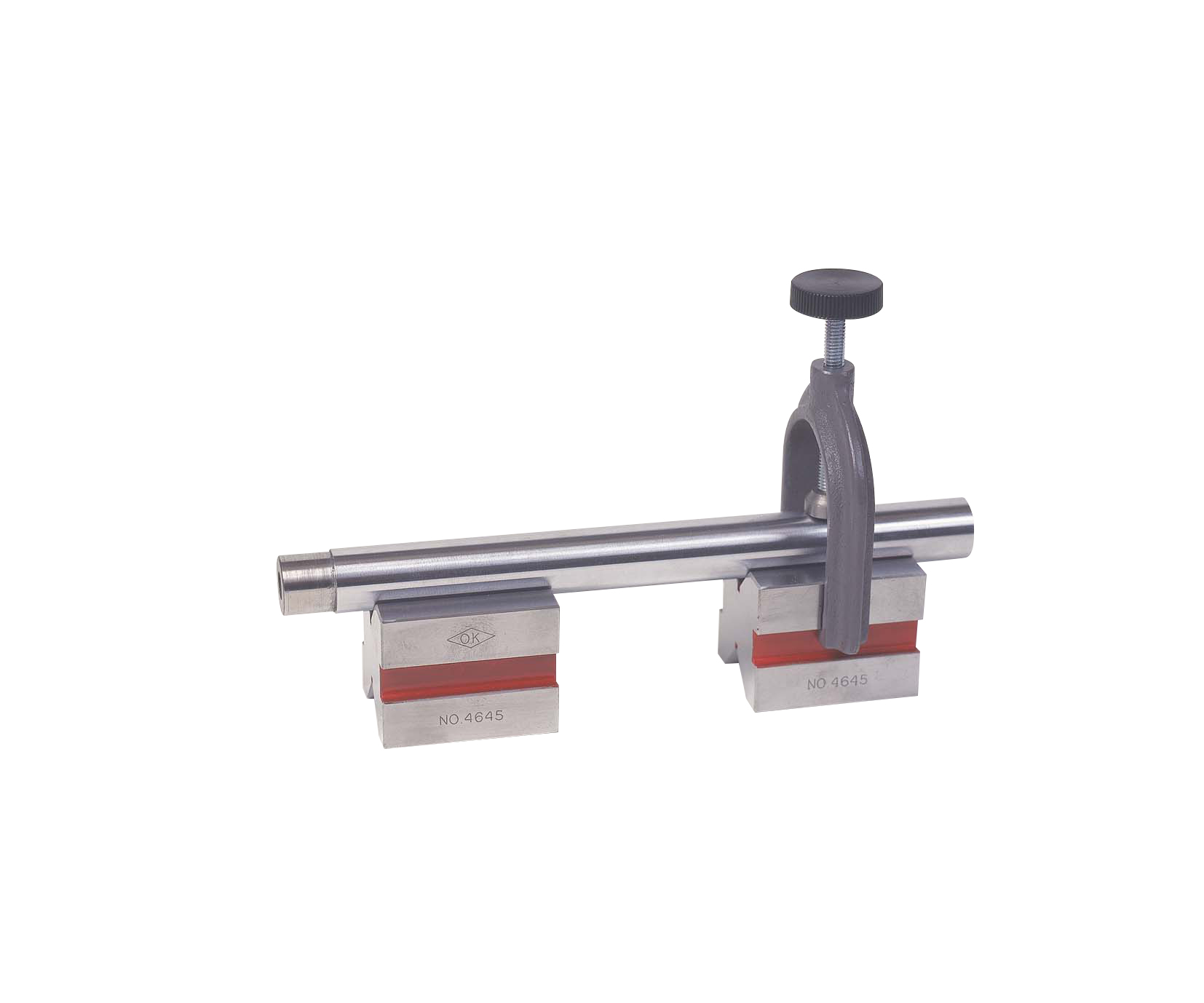

  V Block with Hard Steel Clamp

  OBISHI KEIKI SEISAKUSHO

  V-block with V-grooves in 2 places for installing clamps. Comes with a clamp for fixing the workpiece. (2 pcs) Extremely convenient for inspection of round objects and others and as an auxiliary block (square stand).

  Standard Price:	9,360,108 IDR-
  Days to Ship:	25 Day(s) or more

•

  Stone Surface Plate, Less Rusting and Easy Maintenance

  TSUBAKI KOGYO

  [Features]
  · Approximately twice the hardness of a cast surface plate with little stickiness and no burring or raised edges. There is minimal rust generation and maintenance is easy.
  · Stable plane accuracy due to low thermal conductivity.
  · All requests handled, whether size, hole drilling, groove machining, tapping, etc.
  · Surface plate serving as a reference for measuring the dimensions of workpieces, such as manufactured products, machined products, resin molded items, etc.
  [Applications]
  · Surface plate serving as a reference for measuring the dimensions of workpieces, such as manufactured products, machined products, resin molded items, etc.
  [Caution]
  · Frame sold separately

  Standard Price:	8,037,231 IDR-
  Days to Ship:	Quote

•

  Cast Iron Box Type Surface Plate, Application: General Scribing Table, Measuring Table, Etc.

  OHNISHI MFG

  [Features]
  · It uses casting that has been subjected to sufficient seasoning.
  · Rubbing is conducted after the polishing process (used surface).
  [Applications]
  · Used as a marking-off table, measuring table, etc.

  Standard Price:	6,042,924 IDR-
  Days to Ship:	Quote

•

  V Block (Stone)【2 Pieces Per Package】

  TSUBAKI KOGYO

  [Features]
  ·Since natural stone is used, it does not rust and is easy to maintain.
  ·Accuracy is stable because it does not change over time and is not easily affected by temperature changes.
  ·It's a set of two.
  ·The parallelism between the bottom surface and the V-groove, and the parallelism between the side surface and the V-groove are precisely finished.
  ·The flatness of the bottom surface and V-groove surface is precisely finished.
  [Applications]
  ·For measuring and marking the roundness and cylindricity of round bars such as shafts and pipes.


  Standard Price:	18,480,000 IDR-
  Days to Ship:	Quote

•

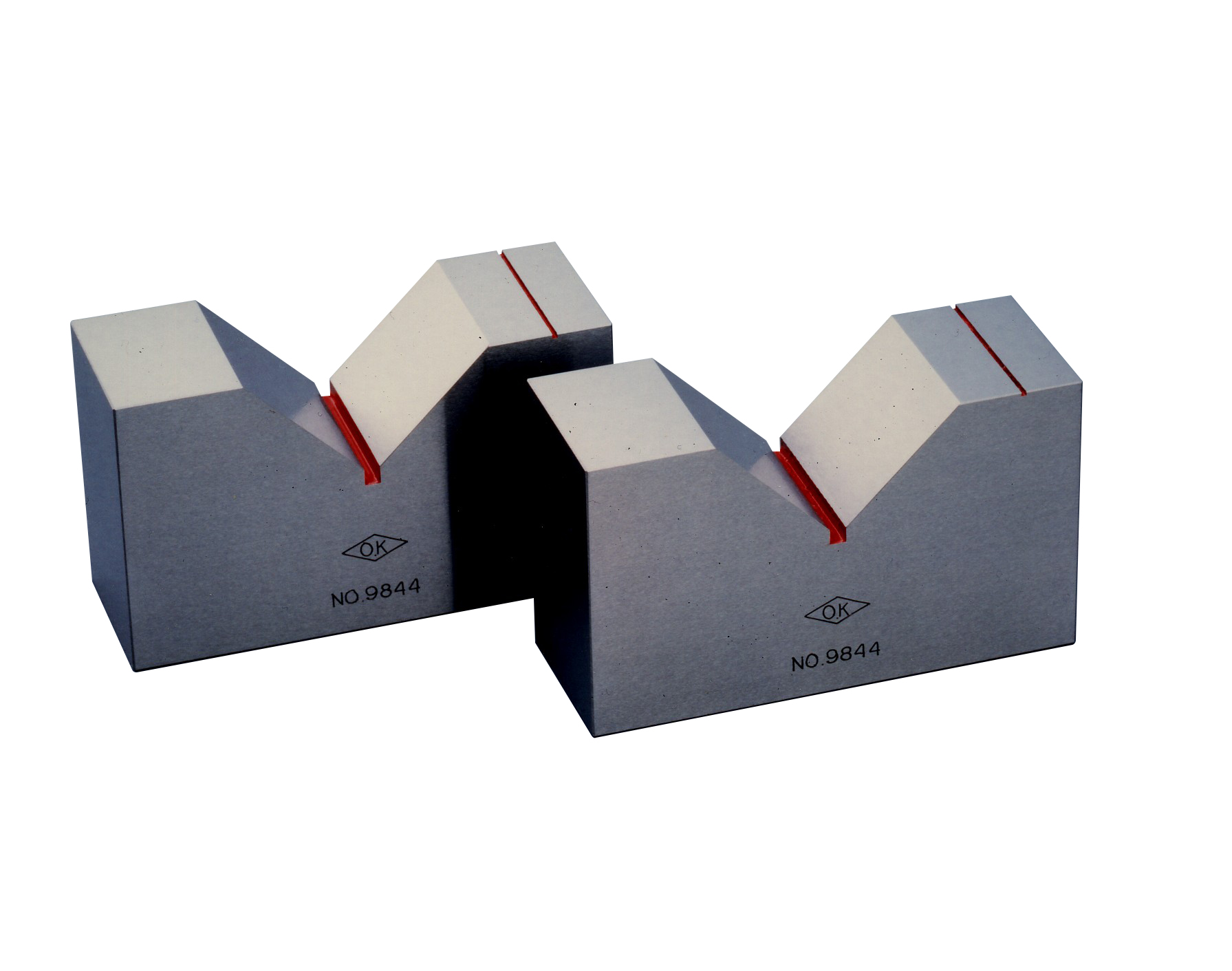

  Hard Steel Precision V Block, Class A

  OBISHI KEIKI SEISAKUSHO

  [Features]
  · Manufactured as 2 pieces to 1 set, with the V grooves and bottom of the 2 pieces running in parallel.
  · Very useful for inspection of circular objects and others, as well as use as an auxiliary block (jig).
  · All sizes are quenched products with a 90-degree V groove

  Standard Price:	4,782,138 IDR-
  Days to Ship:	9 Day(s) or more

•

  V-Block Type B【2 Pieces Per Package】

  MISUMI

  Select from 2 types; machined finish and high-accuracy ground finish.
  Abundant sizes are also available.
  Providing standard products at these prices.

  • Volume Discount

  Standard Price:	605,506 IDR-
  Days to Ship:	11 Day(s) or more

•

  Granite Precision Stone Plate (JIS 1 class)

  NABEYA

  Both the accuracy and rigidity are equivalent to JIS standard (JIS.B7513). Resistant to scratches due to the excellent abrasion resistance. Corrosion is less likely to occur due to the excellent corrosion resistance. There is a receptacle for the level jack on the back of the surface plate.

  Standard Price:	9,089,444 IDR-
  Days to Ship:	9 Day(s) or more

•

  A-Type Precision V-Block Table【2 Pieces Per Package】

  OHNISHI MFG

  [Features]
  ·The V-groove is finished at 90° and is used for simple inspection of cylinders and marking of round bars. A set of 2 pieces is processed in one piece.
  [Applications]
  ·Scribing round bars, raising blocks, etc.
  ·Not suitable for precision measurement.

  • STOCK

  Standard Price:	1,513,164 IDR-
  Days to Ship:	1 Day(s)

•

  Two types of cast iron box type surface plate, machine finish and sliding finish (A grade and B grade)

  UNI SEIKI

  [Features]
  · Can be used as a scribing stand, measurement stand, etc.
  · Scraped finish for a more precise flatness.
  · Can be repaired.
  [Applications]
  · The mechanical finish is for general work (scribing work).

  • STOCK

  Standard Price:	2,871,000 IDR-
  Days to Ship:	1 Day(s) or more

•

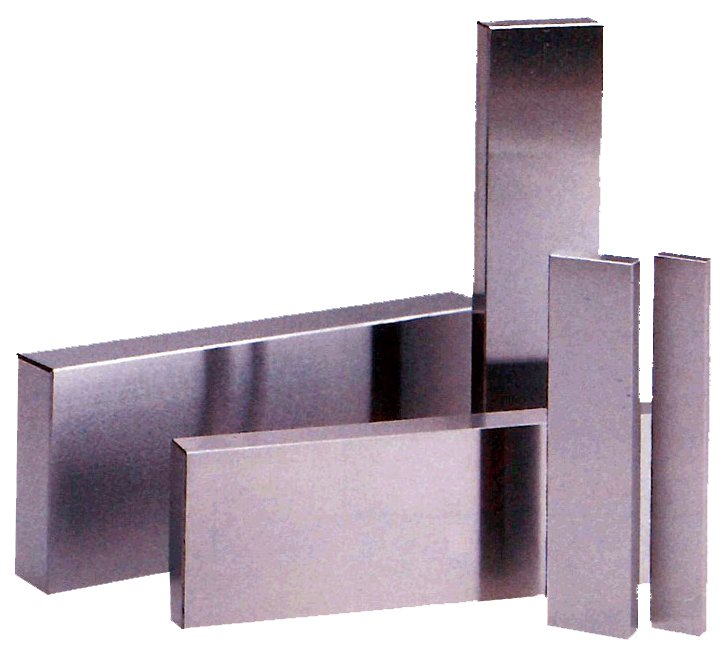

  Steel Parallel

  NEW STRONG

  Steel parallel is fully heat-treated high quality steel material with finish polishing performed on four sides, excluding both end surfaces. Use as a square stand

  Standard Price:	1,230,239 IDR-
  Days to Ship:	10 Day(s) or more

•

  V Block (B Type, Machine Finish)【2 Pieces Per Package】

  ESCO

  As a measuring jig for scribing.
  Material: Cast iron
  Surface treatment: Machine finish
  Quantity: 2 pcs.

  Standard Price:	1,019,688 IDR-
  Days to Ship:	8 Day(s) or more

•

  Precision T Type Stone Surface Plate

  NIIGATA SEIKI (SK)

  A surface plate with handles convenient for centering of machined items, scribing and assembly work onsite.
  [Features]
  · Manufactured with a T-shape that is convenient for lifting and moving.
  · Precision platen made of granite.
  · It is subject to minimal secular change and does not rust.
  [Applications]
  · Can be used for flatness, parallelism, and straightness measurement.
  · It can be used for centering of machined items, scribing, and assembly work.
  · Use at multiple work sites.

  Standard Price:	8,107,917 IDR-
  Days to Ship:	9 Day(s) or more

•

  Precision Stone Surface Plate (0 Grade Equivalent)

  NIIGATA SEIKI (SK)

  A precision stone surface plate that can be used for measuring flatness, parallelism, and straightness as it is subject to minimal secular change and does not rust.
  [Features]
  · Precision surface plate made of granite.
  · Has high hardness and excellent wear resistance.
  · Advantages include minimal secular change and no rust.
  · JIS Class 0 equivalent product.
  [Applications]
  · Can be used for flatness, parallelism, and straightness measurement.
  · It can also be used for centering of machined items, scribing, and assembly work.
  · Can be also used in the manufacturing industry quality control departments or acceptance inspection departments.

  Standard Price:	3,435,434 IDR-
  Days to Ship:	9 Day(s) or more

•

  Handy Digital Load Meter

  NABEYA

  A single clamping chuck that can be used for machining vise, hydraulic clamp, and chuck. The sensor and the digital display are one unit and do not interfere with measurement. Small, lightweight and battery-driven so it can be freely carried for immediate use. The sensor and display part can be rotated by 90 degrees to adjust the display direction.

  Standard Price:	17,758,999 IDR
  Days to Ship:	11 Day(s) or more

•

  Steel Parallel P1–P20

  NIIGATA SEIKI (SK)

  A must-have for high-precision machining! Parallelism and straightness can be maintained.
  [Features]
  ·Fully quenched, precision ground finish.
  ·1 set of 2 pieces.
  ·Parallelism/straightness: 5 µm.
  ·Hardness: HV510-590.
  [Applications]
  ·Set between the table surface of the machine and the workpiece, jig, mold, etc. to maintain parallelism and straightness for high-precision machining.
  ·It can be used in a wide range of applications, including grinding machines, milling machines, drilling machines, press machines, etc., and also protects machines from cutting tools.
  ·It can also be used as an aid for straightness and parallelism inspection.

  Standard Price:	2,685,716 IDR-
  Days to Ship:	26 Day(s) or more

•

  Granite Precision Stone Plate (JIS 00 class)

  NABEYA

  Both the accuracy and rigidity are equivalent to JIS standard (JIS.B7513). Resistant to scratches due to the excellent abrasion resistance. Corrosion is less likely to occur due to the excellent corrosion resistance. There is a receptacle for the level jack on the back of the surface plate.

  Standard Price:	11,419,544 IDR-
  Days to Ship:	9 Day(s) or more

•

  Box Type Surface Plate (Machining Finish)

  NABEYA

  [Features]
  · Hexagonal surface processing has been applied.
  · Can be used for a wide range of operations, from inspection and measurement to machining and assembly.

  Standard Price:	3,328,611 IDR-
  Days to Ship:	10 Day(s) or more

•

  Surface Plate for Precision Inspection

  UNI SEIKI

  [Features]
  · This surface plate is for JIS B 7513 standard precise inspections.
  · A scraping finish has been applied to the face.
  [Applications]
  · Grade 2, Grade 1, Grade 0 are the degrees of flat surface precision for use as needed in product inspection. Use Class 0 when highly accurate inspection is required.

  Standard Price:	14,264,616 IDR-
  Days to Ship:	Quote

•

  UNISEIKI Stone Surface Plate

  UNI SEIKI

  [Features]
  ·JIS B7513 standard product.
  ·Materials: Natural stone (black granite)/-

  • STOCK

  Standard Price:	6,590,599 IDR-
  Days to Ship:	1 Day(s) or more

•

  A-type precision bevel stand (V block)【2 Pieces Per Package】

  UNI SEIKI

  [Features]
  ·The V-groove is precision-finished at 90°, and is used for inspection of cylinders and precision scribing of round bars. There are 2 pieces in a set.
  [Applications]
  ·For precision scribing of cylindrical rods, etc.

  Standard Price:	5,019,077 IDR-
  Days to Ship:	1 Day(s) or more

•

  Precision granite surface plate (JIS Class 1)

  ESCO

  【Product Specifications】
  ・Material-Granite
  ・JIS 1 grade product
  ・High rigidity, corrosion resistant, wear resistant properties, and free from aging and rust
  ・Flatness…7μm
  ・Dim. (mm)…250 x 250 x 75
  ・Weight…14kg

  Standard Price:	4,217,198 IDR-
  Days to Ship:	9 Day(s) or more

•

  Magnet (With Handle)

  ESCO

  It can be used for work by holding a large ruler against the wall or floor, or for simple transportation.

  Standard Price:	743,165 IDR-
  Days to Ship:	8 Day(s) or more

•

  Stone Made Parallel Bar

  NIIGATA SEIKI (SK)

  A surface plate that can be used as a parallel base for precision measurement as it is subject to minimal secular change and does not rust.
  [Features]
  · Precision parallel bar made of granite.
  · Advantages include minimal secular change and no rust.
  · 4 surfaces are precision surfaces.
  · 2 pieces per set.
  [Applications]
  · Can be used as a parallel table for measurement on precision stone surface plates.

  Standard Price:	10,026,500 IDR-
  Days to Ship:	9 Day(s) or more

•

  JIS Type Precision Surface Plate (JIS Class 0)

  NABEYA

  Both the accuracy and rigidity are equivalent to JIS standard (JIS B7513). Because there is little linking (adsorption), this product allows smooth handling of precision machines. Has excellent additional machining potential to allow scratches to be repaired easily. Level adjustment of the surface plate alone can be done with the included adjustment screws. Large surface plate level can be adjusted with a leveling block.

  Standard Price:	18,951,420 IDR-
  Days to Ship:	11 Day(s) or more

•

  JIS Type Precision Surface Plate (JIS Class 1)

  NABEYA

  Both the accuracy and rigidity are equivalent to JIS standard (JIS B7513). Because there is little linking (adsorption), this product allows smooth handling of precision machines. Has excellent additional machining potential to allow scratches to be repaired easily. Level adjustment of the surface plate alone can be done with the included adjustment screws. Large surface plate level can be adjusted with a leveling block.

  Standard Price:	16,507,352 IDR-
  Days to Ship:	11 Day(s) or more

•

  Test workpiece mounting block

  NABEYA

  [Features]
  · Convenient when used in conjunction with a vibration test board.
  · TMT2030B - With slots to enable smooth installation of various workpieces.
  · TMT3045B - T-slots are convenient for clamping workpieces at your desired location (T-slot type)

  Standard Price:	74,276,858 IDR-
  Days to Ship:	11 Day(s) or more

•

  Swage block

  NABEYA

  Can be used for bending and welding steel components for can manufacturing. The punched hole can be used for material bending, tapping and to prevent displacement. Although the punched hole is cast, other products using mechanical machining are also available.

  Standard Price:	46,256,944 IDR-
  Days to Ship:	11 Day(s) or more

•

  Rectangular Surface Plate

  NABEYA

  In order to remedy structural weaknesses of the comb-shaped straight edge caused by aging and temperature changes, the cross section has a rectangular I-shape and both sides are finished parallel.

  Standard Price:	24,579,422 IDR-
  Days to Ship:	69 Day(s) or more

•

  Parallel Clamp

  NIIGATA SEIKI (SK)

  Surface plate (1 set of 2 pieces) ideal for clamping various machined objects.
  [Features]
  · Powerful tightening tool utilizing the lever principle.
  · Main unit and screws are hardened.
  · 2 pieces per set.
  [Applications]
  · It can be used for clamping work for various workpieces.

  Standard Price:	1,496,167 IDR-
  Days to Ship:	8 Day(s) or more

•

  JIS Type Precision Surface Plate (JIS Class 2)

  NABEYA

  [Features]
  · Both the accuracy and rigidity are equivalent to JIS standard (JIS B7513).
  · Because there is little linking (adsorption), this product allows smooth handling of precision machines.
  · Has excellent additional machining potential to allow scratches to be repaired easily.
  · Level adjustment of the surface plate alone can be done with the included adjustment screws.
  · Levels can be adjusted with a leveling block on the large surface plate

  Standard Price:	15,088,333 IDR-
  Days to Ship:	53 Day(s) or more

•

  Forging plate

  NABEYA

  Can be used for cutting, bending, and welding steel sheets in sheet metal work. Coated only on the short side to enable it to be distinguished from the box type surface plate.

  Standard Price:	22,192,500 IDR-
  Days to Ship:	10 Day(s) or more

•

  Angle stand for stone surface plate (without casters)

  NABEYA

  A dedicated stand for a stone surface plate. Misalignment and falling off of the surface plate are minimized by the use of the built-in level jack. Adjustment of the surface plate height (C dimension) can be done with the foot jack. Fine adjustment of the surface plate level is possible using the built-in level jack.

  Standard Price:	24,800,699 IDR-
  Days to Ship:	11 Day(s) or more

•

  Box Type Surface Plate (Surface Finish Class A)

  NABEYA

  [Features]
  · Hexagonal surface processing has been applied.
  · Can be used for a wide range of operations, from inspection and measurement to machining and assembly.
  · Rib structure product.

  Standard Price:	5,354,875 IDR-
  Days to Ship:	11 Day(s) or more

•

  Angle Block for Box Type Surface Plate

  NABEYA

  [Features]
  · A special stand for box table.
  · Surface plate can be placed directly for quick installation. (Fine adjustment of the surface place alone is not possible).
  · If fine adjustment of the surface plate alone is necessary, an angle plate compatible with the leveling block may be available separately.
  · The stopper prevents surface plate misalignment and stops things from falling off.
  · Height of the surface plate can be adjusted to change the level using a foot jack

  Standard Price:	18,566,768 IDR-
  Days to Ship:	9 Day(s) or more

•

  Plate Fixtures

  NIIGATA SEIKI (SK)

  Granite jig plate for precision inspection with threaded holes.
  [Features]
  · Granite precision surface plate with mounting screw holes.
  · It features advantages such as high hardness, excellent abrasion resistance, little secular change and rust resistance.
  [Applications]
  · Can be used as an inspection-use jig plate for fixing by using a clamp.

  Standard Price:	6,806,762 IDR-
  Days to Ship:	8 Day(s) or more

•

  JIS Type Surface Plate Angle Block

  NABEYA

  A special stand for JIS type surface plate. The stopper prevents surface plate misalignment and stops things from falling off. Adjustment of the surface plate height (C dimension) can be done with the foot jack. Angle stand for large surface plates help to support different types of work. (Large surface plate: JP10020, JP12024, JP16025)

  Standard Price:	25,833,237 IDR-
  Days to Ship:	25 Day(s) or more

•

  JIS Type Surface Plate with Movable Angle Block

  NABEYA

  Stools are easy to move due to the casters. Caster has fixing function (stopper). Shelf makes it convenient for storage of measuring jigs.

  Standard Price:	81,778,315 IDR-
  Days to Ship:	69 Day(s) or more

•

  Angle Master

  NABEYA

  Fully heat-treated. Made of tough cast iron with three-piece lapping finish.

  Standard Price:	89,007,412 IDR-
  Days to Ship:	11 Day(s) or more

•

  Square block, mechanical finish

  NABEYA

  Convenient for provisional fixation during log measuring. Can also be used as a normal block.

  Standard Price:	3,318,900 IDR-
  Days to Ship:	8 Day(s) or more

•

  Stone Surface Plate Angle Block Set (JIS Class 00)

  NABEYA

  An affordable type that comes with precision stone surface plate and dedicated angle stand.

  Standard Price:	50,164,966 IDR-
  Days to Ship:	11 Day(s) or more

•

  Stone Surface Plate Angle Block (with Caster)

  NABEYA

  [Features]
  · Stools are easy to move due to the casters.
  · Caster has fixing function (stopper).
  · Observe the allowable load of the surface plate.
  · Be sure to receive the full load with the foot jack except when transporting

  Standard Price:	37,602,962 IDR-
  Days to Ship:	11 Day(s) or more

Loading...
